The Harley-Davidson® Tri Glide Ultra is a long-haul touring Trike with all the torque, style, premium infotainment, and cargo space you’ll ever need.

Specifications

  • Dimensions
    add remove
    • Length:
      105.1 in
    • Seat height, unladen:
      28.9 in
    • Ground clearance:
      4.9 in
    • Rake (steering head):
      26
    • Trail:
      3.9 in
    • Wheelbase:
      65.7 in
    • Tires, front specifications:
      MT90B16 72H
    • Tires, rear specifications:
      P205/65R15 92T
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      1,199 lbs
    • Weight, in running order:
      1237 lb
    • Luggage capacity – volume:
      6.8 cu ft (0.19 m3)
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight® 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      120.2 ft-lb
    • Engine torque (RPM):
      2500
    • Horsepower:
      93 HP / 69 kW @ 5020 rpm
    • Lean angle, right (deg.):
      N/A
    • Lean angle, left (deg.):
      N/A
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      42 mpg (5.6 l/100km)
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      158 g/km CO2
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      10.534
    • Gear ratios (overall) 2nd:
      7.302
    • Gear ratios (overall) 3rd:
      5.423
    • Gear ratios (overall) 4th:
      4.392
    • Gear ratios (overall) 5th:
      3.741
    • Gear Ratios (overall) 6th:
      3.157
  • Chassis
    add remove
    • Front fork:
      49mm dual bending valve
    • Rear shocks:
      Hand-adjustable emulsion rear suspension
    • Wheels, front type:
      Black, 7-spoke Cast Aluminum
    • Wheels, rear type:
      Black, 7-spoke Cast Aluminum
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights; LED tail/stop, front signal lights and rear turn signals
    • Gauges:
      Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      25
    • Speakers:
      4
    • Speaker size:
      5.25 inch
    • Headset specifications (if equipped):
      16 - 64 ohms
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade (USA & Canada only)
    • Languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Standard (Passenger Headset Sold Separately)
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Prices shown on our website may change at any time without notice. We work hard to keep all information accurate and current, but mistakes can occur. If an item is listed with an incorrect price due to a typo, photo, technical issue, or incorrect details received from a manufacturer, vendor, or supplier, House of Harley-Davidson reserves the right to refuse or cancel any order placed at that price.

Advertised prices do not include sales tax, title and registration fees, other government-required fees, financing costs, or the optional $249.50 service fee. A service fee is not required by law, but may be charged to motor vehicle purchasers or lessees for services related to compliance with state and federal laws, verifications and public safety, and must be reasonable.

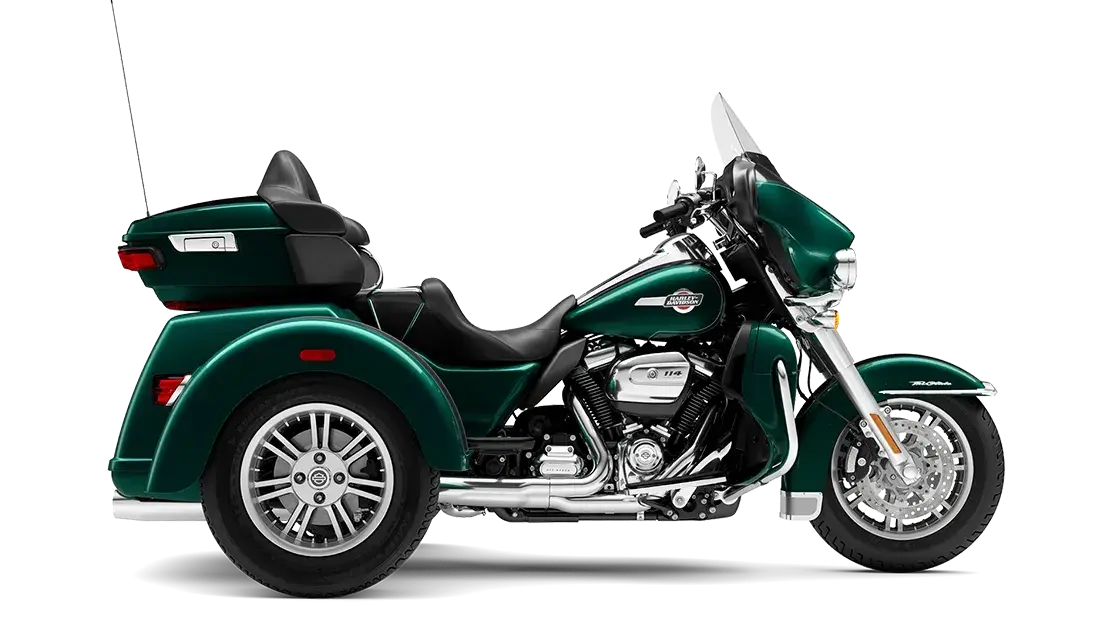

2024 Harley-Davidson® Tri Glide® Ultra Alpine Green / Vivid Black
