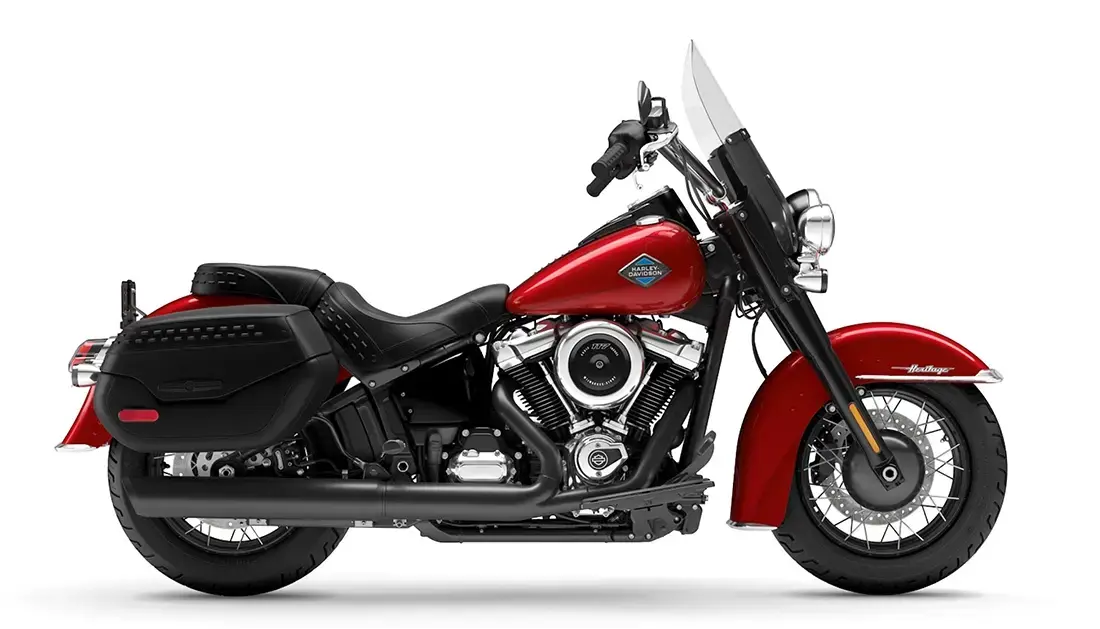

‹ Home › Inventory › 2026 Harley-Davidson® Heritage Classic Brilliant Red Black Laced Wheels

The 2026 Heritage Classic is the perfect blend of vintage soul with modern muscle. We’ve packed a Milwaukee-Eight® 117 motor into its low-slung frame and mated it to a performance-tuned 2-into-1 exhaust that makes it a monster. It also comes with lockable symmetrical saddlebags, LED lighting all around, and optional tubeless laced wheels. The only thing “Classic” about it is the name.

This motorcycle features and additional Fob, and Slip On Mufflers.

Specifications

Dimensions

add remove
- Length:

  95.1 in
- Seat height, unladen:

  27.2 in
- Ground clearance:

  4.7 in
- Rake (steering head):

  30
- Trail:

  5.5 in
- Wheelbase:

  64.2 in
- Tires, front specifications:

  130/90B16,73H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  690 lbs
- Weight, in running order:

  719 lb
- Luggage capacity – volume:

  1.6 cu ft (0.045 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  120.2 ft-lb
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  27.4
- Lean angle, left (deg.):

  27.4
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Black, 9-Spoke Cast Aluminum
- Wheels, rear type:

  Black, 9-Spoke Cast Aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
