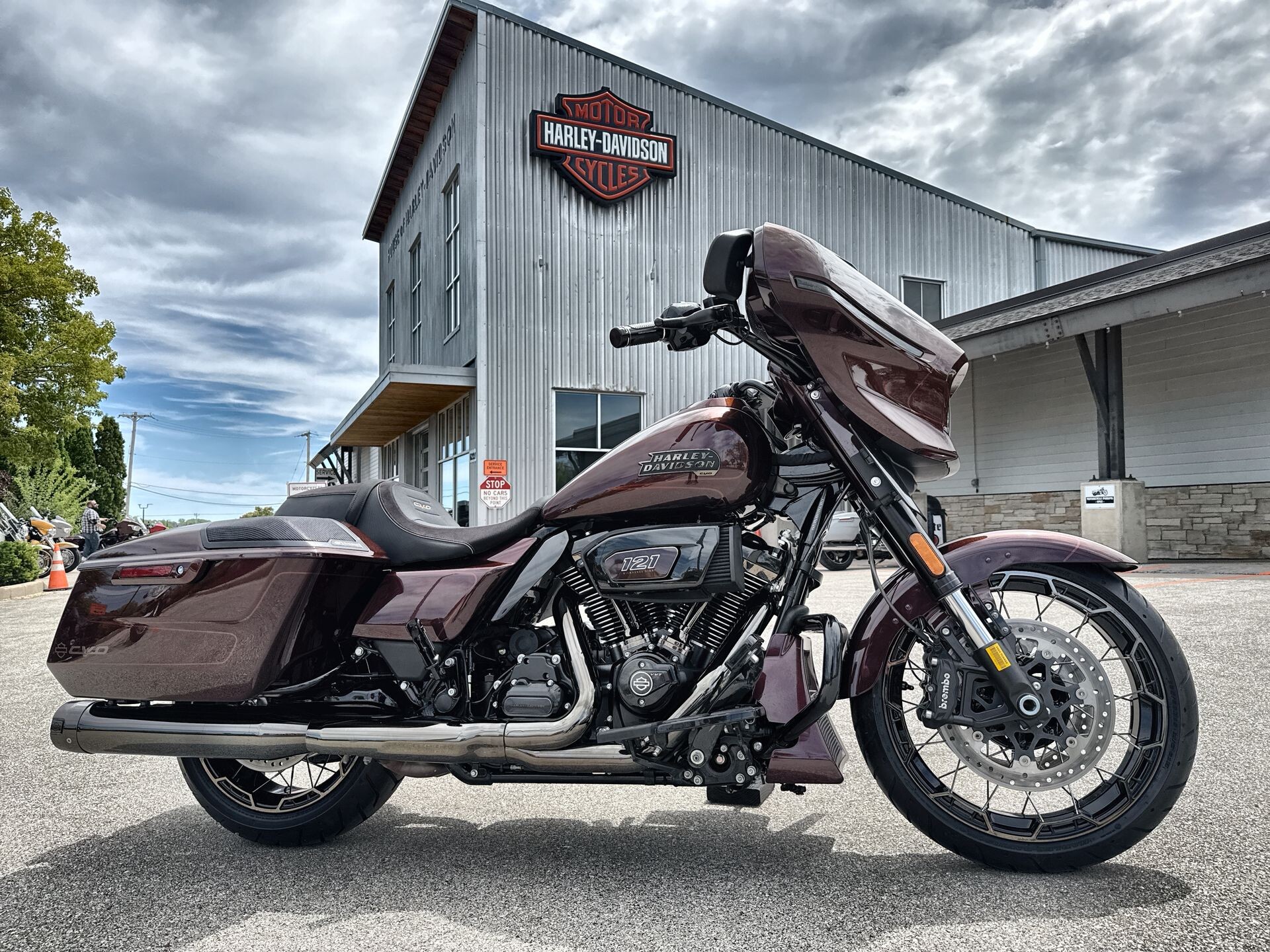

‹ Home › Inventory › 2024 Harley-Davidson® CVO™ Street Glide® Copperhead

An icon, reimagined for the road ahead.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Overall width:

  38.4 in
- Overall height:

  53.1 in
- Seat height, unladen:

  28.0 in
- Ground clearance:

  5.5 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Luggage capacity – volume:

  2.2 cu ft (0.062 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Fork angle:

  30
- Reserve fuel capacity, fuel injection:

  1.0 gal
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Air cleaner:

  Synthetic Felt, Washable
- Exhaust:

  2-1-2 dual exhaust
- Lubrication system:

  Pressurized, dry-sump
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  139.4 ft-lb
- Engine torque (RPM):

  3,000
- Horsepower:

  115 HP / 86 kW @ 4500 rpm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  45 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
- Final drive:

  Belt, 32/68 ratio
- Clutch:

  Mechanically actuated 10 plate, wet Assist & Slip
- Transmission:

  6-Speed Cruise Drive®
Chassis

add remove
- Front fork:

  47 mm Inverted 1x1 Front Forks
- Rear shocks:

  Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
- Wheels, front type:

  Combo Cast Laced
- Wheels, rear type:

  Combo Cast Laced
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
- Frame:

  Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
- Swingarm:

  Mild steel, two piece drawn and welded section; forged junctions; MIG welded
Electric

add remove
- Lights (as per country regulation), Headlamp:

  LED
- Lights (as per country regulation), Tail/Stop:

  LED
- Lights, front signal lights:

  LED
- Lights, rear turn signals:

  LED
- Gauges:

  Digital gauges integrated within the display
- Battery:

  Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating)
- Charging:

  Three-phase, 58-amp system (754W max power @ 13V)
- Starting:

  1.6 kW electric with solenoid shift starter motor engagement
- Electric power outlet:

  15 Watt USB-C electric power accessory port in media storage box.
- GPS System:

  Yes, imbedded navigation system with real-time traffic and weather via Wi-Fi Hotspot
Infotainment

add remove
- Screen size:

  12.3 in (312 mm)
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  4
- Speaker size:

  Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
- Headset specifications (if equipped):

  Harley-Davidson Packtalk Edge wireless Bluetooth® headset
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice recognition: phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
- Bluetooth:

  Phone/Media Player, Headset
