The 2026 Pan America 1250 ST is for riders who know the best stories aren't told in a straight line. Featuring a 150 hp Revolution Max® motor, the new clutchless Quick Shifter, Adaptive Ride Height, all-new ride modes, and industry-standard 17” wheels for easy customization, it’s a street-tuned, tech-forward machine that moves like you belong everywhere.

Specifications

  • Dimensions
    add remove
    • Length:
      88.2 in
    • Ground clearance:
      6.7 in
    • Rake (steering head):
      25
    • Trail:
      3.7 in
    • Wheelbase:
      62.2 in
    • Tires, front specifications:
      120/70ZR17 58W
    • Tires, rear specifications:
      180/55ZR17 73W
    • Fuel Capacity:
      5.6 gal
    • Oil capacity:
      4.75 qt.
    • Weight, as shipped:
      511 lbs
    • Weight, in running order:
      546 lb
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      91.5 ft-lb
    • Engine torque (RPM):
      6750
    • Horsepower:
      149 HP / 111 kW @ 8750 rpm
    • Lean angle, right (deg.):
      37
    • Lean angle, left (deg.):
      37
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Front fork:
      47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, type:
      Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Infotainment
    add remove
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Prices on our website may change without notice. We do our best to keep information accurate and current, but sometimes errors happen. If a product is listed with the wrong price due to a typo, photo, technical glitch, or incorrect information from a supplier, House of Harley-Davidson reserves the right to refuse or cancel any order placed at the incorrect price.

Please note: advertised prices do not include sales tax, title and registration fees, other required government fees, financing costs, or the optional $249.50 service fee. A service fee is not required by law, but may be charged to motor vehicle purchasers or lessees for services related to compliance with state and federal laws, verifications and public safety, and must be reasonable.

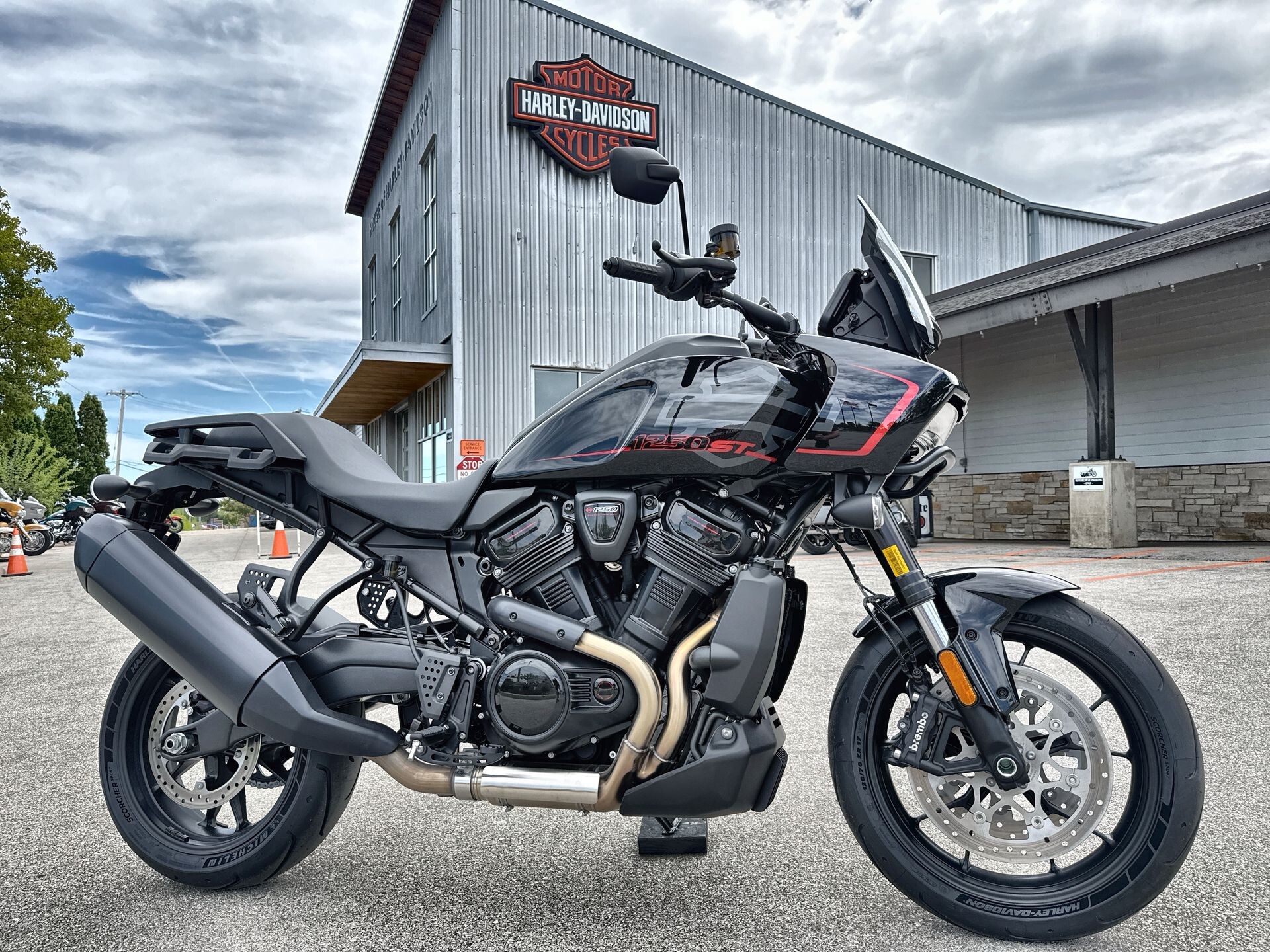

2026 Harley-Davidson® Pan America® 1250 ST Vivid Black Black Trim
