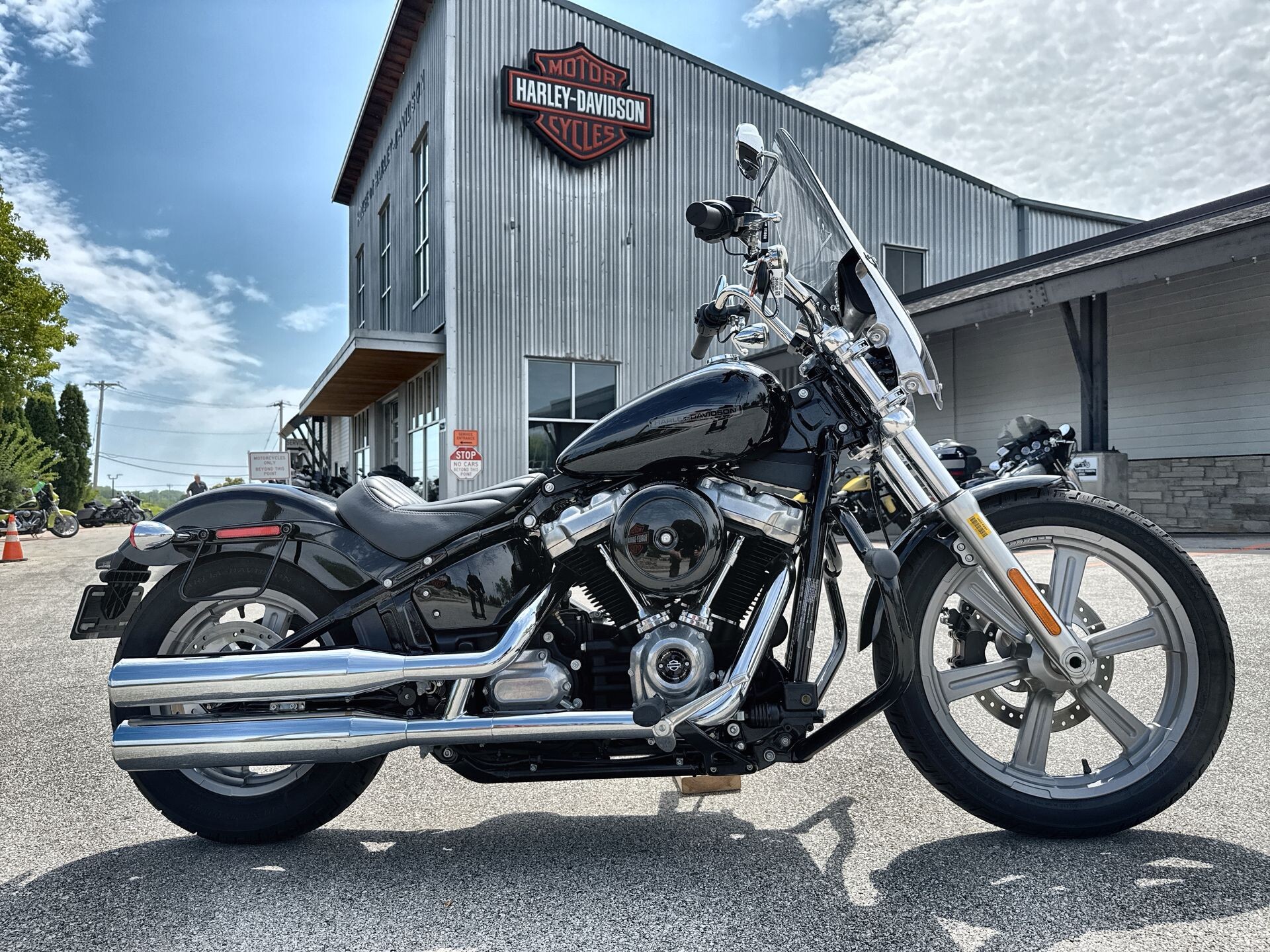

‹ Home › Inventory › 2022 Harley-Davidson® Softail Standard® Vivid Black

A stripped-down, souped-up, bobber with a post WWII era look. You get the power and soul-satisfying sound of the Milwaukee-Eight® 107 V-Twin to take you into the future. Fast.

Specifications

Dimensions

add remove
- Length:

  91.3 in
- Seat height, unladen:

  26.8 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  30
- Trail:

  6.2 in
- Wheelbase:

  64.2 in
- Tires, front specifications:

  100/90B19,57H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  3.5 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  642 lbs
- Weight, in running order:

  655 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 107
- Bore:

  3.9 in
- Stroke:

  4.4 in
- Displacement:

  106.49 in³
- Compression ratio:

  10.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  109.9 ft-lb
- Engine torque (RPM):

  3000
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  128 g/km
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Silver, Annihilator cast aluminum
- Wheels, rear type:

  Silver, Annihilator cast aluminum
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
